Door Handle
Rollers
Double Adjustable Roller for UPVC
Sliding Doors(S.S. 304 Body)
Code: DARSD78
Sliding Doors(S.S. 304 Body)
Code: DARSD78
◉ Adjustable double roller
◉ Capacity-90 kg for two rollers
◉ Compatible with all standard profiles
◉ Material-SS 304,polymer wheel
◉ Dimensions-12x24x153mm(WxDxL)
◉ Adjustable from 19mm to 24mm
Double Adjutable Roller for
UPVC Sliding Doors
Code: DARSD79
UPVC Sliding Doors
Code: DARSD79
◉ Adjustable double roller
◉ Capacity-90 kg for two rollers
◉ Compatible with all standard profiles
◉ Material- Galvanized steel & SS 304,
profile wheel
◉ Dimensions-12x24x153mm(WxDxL)
◉ Adjustable from 19 mm to 24 mm
Double Adjustable
Roller for UPVC Sliding Doors
Code: DARSD80
Roller for UPVC Sliding Doors
Code: DARSD80
◉ Adjustable double roller
Capacity-90 kg for two rollers
◉ Compatible with all standerd profiles
◉ Material-galvanized steel & S.S 304,
polymer wheel
◉ Dimensions- 12x20x160 mm (WxDxL)
◉ Adjustable from 21 mm to 27 mm
Double Adjustable
Roller for UPVC Sliding Doors
Code: DARSD81
Roller for UPVC Sliding Doors
Code: DARSD81
◉ Adjustable duble roller
◉ Capacity 90 kg for two rollers
◉ Compatible with all standerd profiles
◉ Material carbona steel zinc plated &
polymer wheel
◉ Dimensions: 12x20x159 mm (WxDxL)
◉ Adjustable from 20 to 26 mm

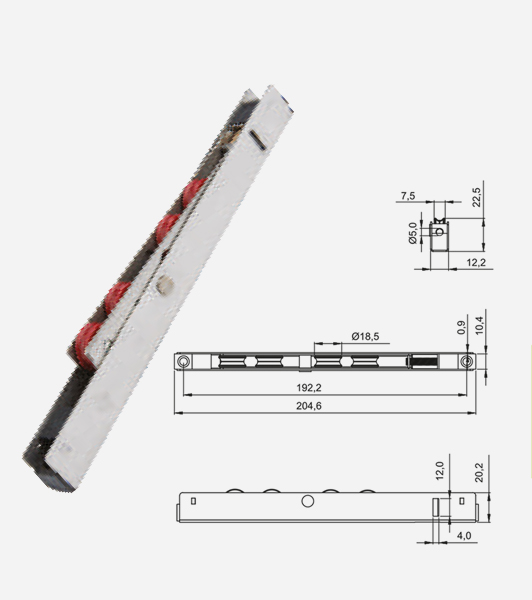

Four Wheel Adjustable Roller for
UPVC Sliding Doors 110 kg
Code: FWARSD82
UPVC Sliding Doors 110 kg
Code: FWARSD82
◉ Adjustable four wheel roller
◉ Capacity 110 kg for two rollers
◉ compatible with all standard profiles
◉ Material carbon steel zinc
plated & polymer wheel
◉ Dimensions: 12x20x201 mm (WxDxL)
◉ Adjustable from 20 to 26 mm
Single Roller with Groove
Code:SRWG83
Code:SRWG83
◉ Fits all Euro-Groove and
non Euro-Groove profiles
◉ Capacity-40 kg
◉ Dimensions-16 x 14 mm (WxL)
◉ Material-Zamak casted body &
polymer wheel
◉ High-quality needle/ball bearing
◉ Noiseless operation
Single Roller with Groove
Code: SRWG84
Code: SRWG84
◉ Fits all Euro-Groove and
non Euro-Groove profiles
◉ Capacity-40 kg
◉ Dimensions-16 x 12.8mm (WxL)
◉ Material-A Grade zinc alloy & polymer wheel
◉ High-quality needle/ball bearing
◉ Noiseless operation
Single Roller with Groove
Code: SRWG85
Code: SRWG85
◉ Fits all Euro-Groove and
non Euro-Groove profiles
◉ Capacity-40 kg
◉ Dimensions-16 x16mm (WxL)
◉ Material-Zamak casted body &
polymer wheel
◉ High-quality needle/ball bearing
◉ Noiseless operation
Single Roller with
Groove 16(W)x 19.2(H)
Code: SRWG86
Groove 16(W)x 19.2(H)
Code: SRWG86
◉ Grooved wheel roller fits all euro
groove and non-euro groove profiles
◉ Capacity: 60 kg.
◉ Dimension 16 x 19.2
◉ Material: SS 304 Body & polymer wheel
◉ High quality needle ball bearing
◉ Noiseless operation
Single Roller Flat Type
16(W) x 13.4(H)
Code: SRFT87
16(W) x 13.4(H)
Code: SRFT87
◉ Flat wheel roller fits all euro
groove and non-euro groove profiles
◉ Capacity:40 kg
◉ Dimension 16 x 13.4
◉ Material: SS 304 Body & polymer wheel
◉ High quality needle/ball bearing
◉ Noiseless operation
Mesh Roller Plastic
Code: MRP88
Code: MRP88
◉ Flat wheel roller fits almost
every mesh shutter profile
◉ Capacity: 8 kg
◉ Dimension 10 x 10.5
◉ Material: Polymer body & Steel wheel
◉ Noiseless operation
Mesh Roller SS
Code :MRSS89
Code :MRSS89
